The M-SPEC22S is a Patent Pending 22LR caliber suppressor precision machined from aerospace grade 7075-T6 Aluminum and designed to shoot .22LR, 17HMR & 22WMR caliber ammunition. Its unique design allows for mounting to either a PlanB adapter or direct thread 1/2-28 UNEF adapter. Each of the five baffles can be removed for easy cleaning and enable length configuration with varying sound suppression levels.
6.750''
5.930''
5.110''
4.290''
3.470''
4.70 OZ
4.14 OZ
3.58 OZ
3.02 OZ
2.46 OZ
NOTE: LENGTHS & WEIGHTS SHOWN ARE SUPPRESSOR BODY ONLY & DO NOT INCLUDE ADAPTERS.
SEE BELOW FOR ADAPTER INFORMATION.
X5
BAFFLES
X4
BAFFLES
X3
BAFFLES
X2
BAFFLES
X1
BAFFLES
The M-SPEC22S can be configured to your length & sound reduction requirements by adding or removing baffles.
The suppressor ships with x5 baffles as standard giving an overall suppressor body length of 6.750''.
A minimum overall length of 3.470'' can be achieved using one baffle.
1/2-28 UNEF
DIRECT THREAD ADAPTER
THREAD ADAPTER
Each suppressor comes as standard with two adapter options that feature a 1/2-28 UNEF direct thread and a Plan B muzzle device mount.
Machined from 17-4 PH Stainless Steel in H900 condition they can both be fitted using a standard Armorers wrench / Castle Nut tool.
Using the Plan B mount allows for muzzle devices to remain installed on multiple weapons and the suppressor can be shared from one system to another.
This is especially useful if using the popular CMMG Bravo conversion kits in center fire ARs, where the muzzle device can remain installed and the suppressor swapped out as required.
1.55 OZ
1.67 OZ
The M-SPEC22S is machined from 7075-T6 Aluminum and anodized to
MIL-A-8625 Type III Hardcoat, Class 2 (#37038 of FED-STD-595) Black.
This is a first of its kind modular PlanB mount suppressor that can also be used on a direct thread .22LR pistol fitted with a red dot sight.
Baffle diameter is 1.375'' and the maximum diameter of the blast chamber base is 1.440''
The larger diameter design allows for increased baffle volume that improves sound reduction and
suppressor performance.
X5 BAFFLES
BLAST CHAMBER
END CAP
PLAN B ADAPTER
1/2-28 UNEF DIRECT THREAD ADAPTER
Modular baffle design
Easy disassembly & cleaning
1/2-28 direct thread & PlanB adapter mounts included.
Certified aerospace grade materials for full traceability.
Type III hardcoat anodized to MIL-A-8625 standard.
Larger baffle volume for improved noise suppression.
17-4 Stainless Steel mounting adapters for improved corrosion
resistance and lifespan.
Fits 22LR Rifles and Handguns (with red dot sight fitted).
Made in the USA.
SKU: 01-SUP-MSPEC22S
UPC: 614347652046
KEY FEATURES:
ACOUSTIC SIGNATURE REDUCTION:
Third party tested to MIL-STD-1474E.
The M-SPEC22S produces the following dB performance at muzzle:
22LR Optimum Baffle Configuration.
Ruger 10/22, CCI Standard, 40Gr 1050 FPS.
86°F, 48% Humidity.
5 Shot Average: 109 dB.
PATENT PENDING

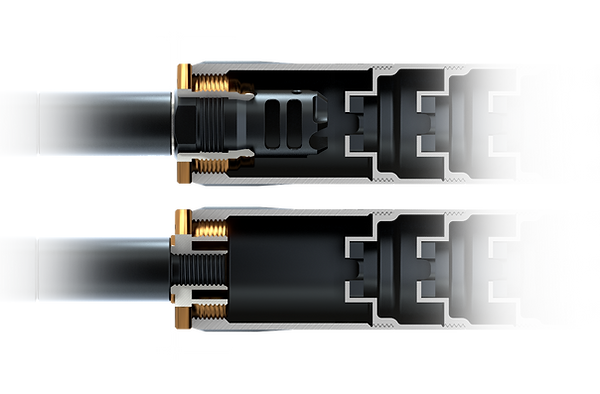

LOW PROFILE MOUNTING:
Perfect alignment with an AR Handguard can be achieved with low profile mounting options in either PlanB or 1/2-28 Direct thread.
The PlanB mount offers .0645'' from the barrel shoulder to the start of the adapter flange while the direct thread adapter offers .0500'' of relief.
Note: PlanB distance is variable and depends on the number of timing shims utilized on install.
Dimensions based on Lantac Muzzle Devices.
Other manufacturers will vary.
1/2-28 DIRECT THREAD ADAPTER.
PLAN B ADAPTER.
.0645''
.0500''

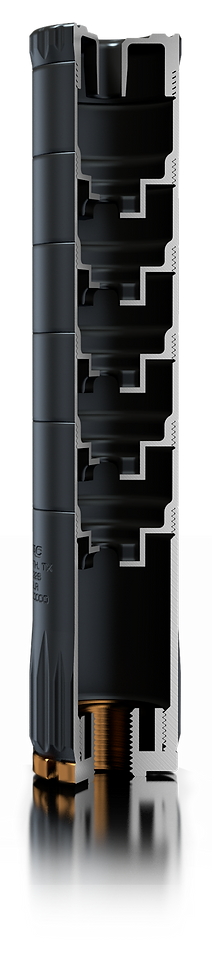

DIRECT THREAD PISTOL SUPPORT:
Direct thread to 1/2-28 UNEF Pistol Barrels.
The M-SPEC22S can be used on a 22LR Pistol fitted with a red dot or suppressor height sights.
Enjoy enhanced sound suppression with the look of a full size moderator.
